Vibra Technics Competition/Race Mount Package
Ford Focus RS MK1

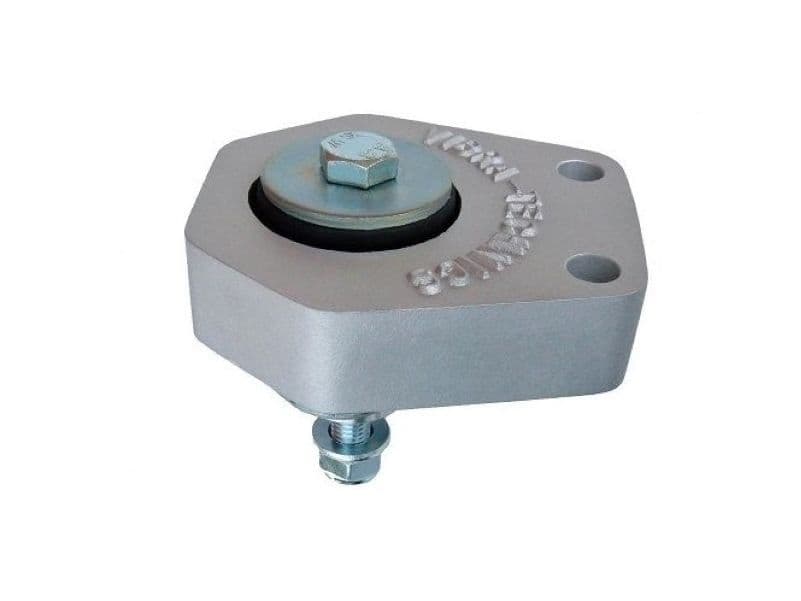

1 x RHS Engine Mount Competition
This RHS engine mount is designed as a direct replacement for the standard Ford part on Focus RS. It reduces engine movement in all directions but in "competition" compound still isolates some noise and vibration but is able to react the additional inputs of track use. We recommend this mount is used in conjunction with FOR245MX (LHS) and FOR224B (Torque link Bush).
Replaces OEM part number:- 1112025, 1102572, 1072572, 1146296 (1M5O 6038 AA)
1 x LHS Engine mount Competition
This LHS mounting carries approximately half the weight of the powertrain and has to react forces in the three orthogonal planes as well as rotational. The standard mount does an acceptable job controlling engine movement and isolating the cabin from noise and vibration under 'normal' driving conditions. However when subjected to a tuned engine and/or high performance driving conditions more control of engine movement is required. The fitting of FOR244M will substantially reduce vertical and lateral engine movement and the rubber section will still give a degree of isolation from noise and vibration. It also gives vastly superior comfort and isolation from engine vibration over inferior aftermarket urethane mounts.
This part is a direct replacement for the Ford OE mount and comes with a new centre nut which we suggest is assembled using thread locking compound.
Replaces OEM part numbers:- 98AB 7M121 PB, 1133020, 1133019, 1061131, 1066070, 1092270

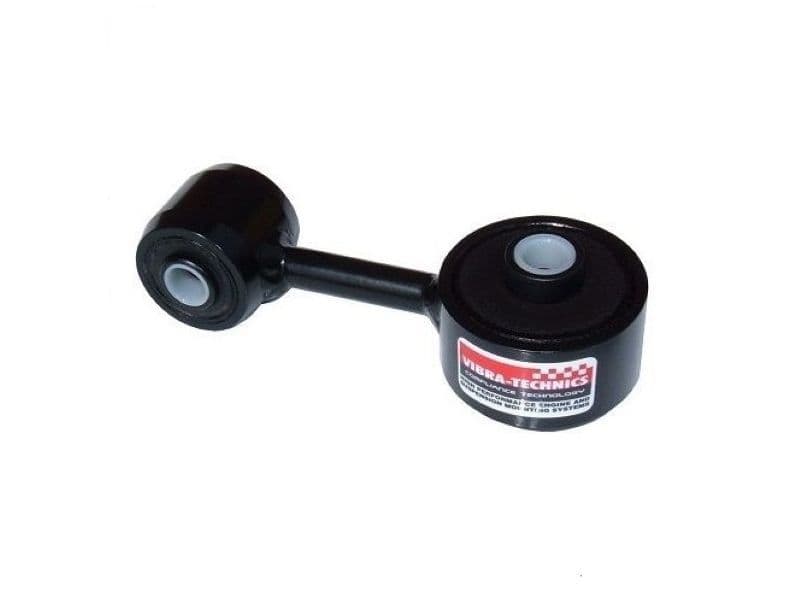

1 x Engine torque link Competition
The link uses two high quality double bonded rubber bushes. The link metal is a welded steel construction with a tensile and compressive strength in excess of 5 tonnes.This competition version uses a higher capacity large end bush increasing stiffness and load capability. It is recommended for competition cars only due to the increased harshness.
Replaces OEM part numbers:- 98AB6P082MB, 98AB6P082MA, 98AB6P082AH, 1094519, 1061205, 1102416, 1101077, 4344890
