Gaz Coilover Kit Gold Sierra Sapphire Cosworth 2WD GGR1142

Gaz Coilover Kit Gold Sierra Sapphire Cosworth 2WD GGR1142

Gaz Gold height adjustable coilover kits are a premium range of suspension units designed for tarmac motorsport and the serious track day enthusiast.

The Gaz Gold Cosworth Suspension Coilovers Lowering Kits features are:-

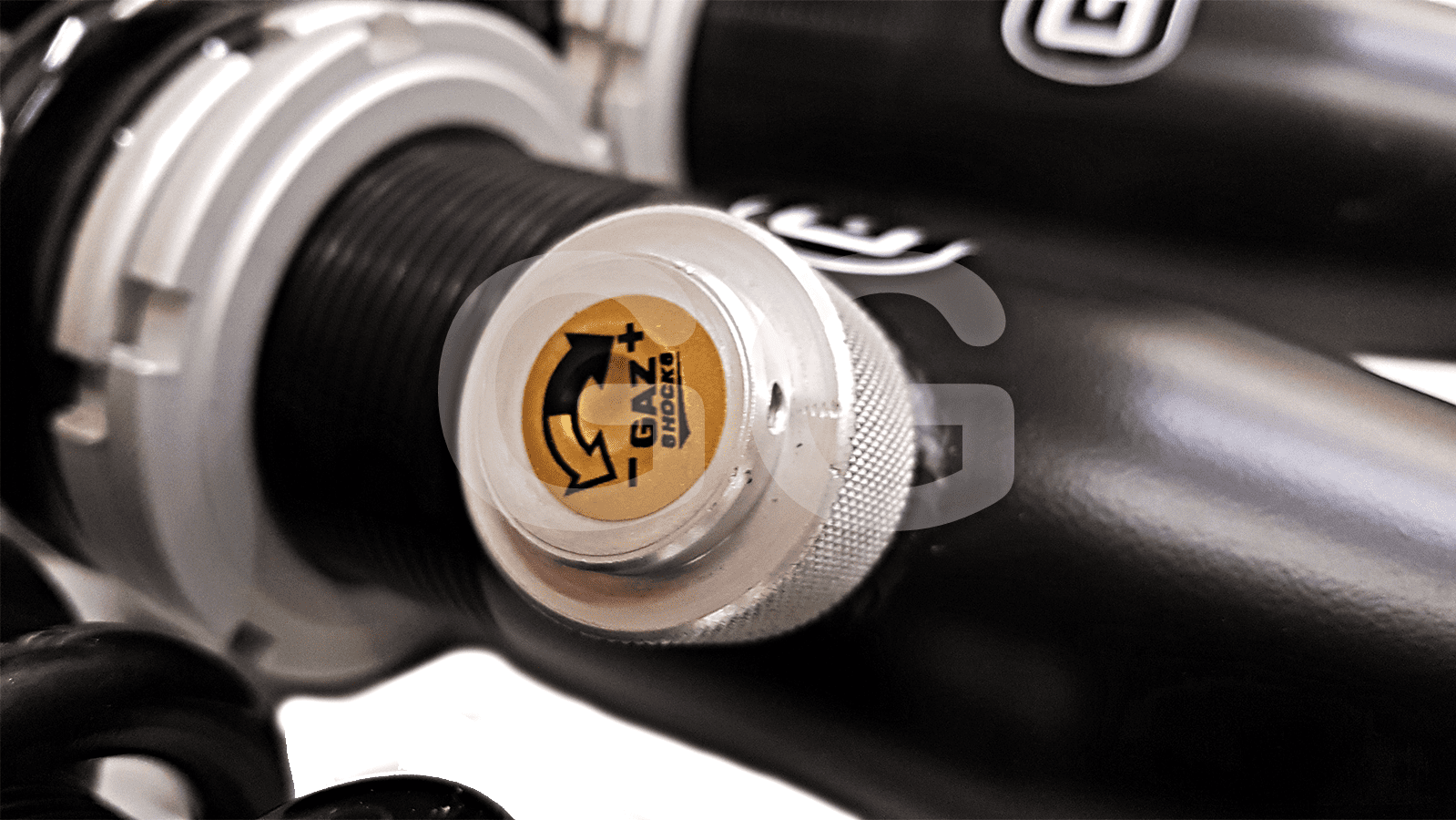

1. Front and rear units adjust bump and rebound from a single control knob on the side of the unit.

2. Struts and semi struts have 62mm bodies for increased oil capacity. These units are fitted with 22mm diameter induction hardened piston rods that are hard chrome plated for strength and durability.

3. All units have multi lip sealing. The outer seal is a metal encased wiper to clean the piston rod. This in turn extends main seal performance and oil retention under extreme conditions.

4. All the Gold range are fitted with a gas cell in the outer reservoir and filled with a high viscosity index multi grade oil to prevent cavitation and reduce fade in motor racing conditions.

5. The coilovers and telescopic units in this range utilise lightweight billet alloy components where possible, i.e. bases, end fittings, seats, lockrings, rod guides and gland nuts. The outer tube is steel with a nickel coating to provide the best anti corrosive finish possible. All outer alloy components are anodised.

6. All units are provided with high quality coil springs in various rates. Spring rates can be altered on request to suit customers requirements.

Springs provided are  front 8 inch long x 400 lbs

                                        rear 12 inch long  x  200 lbs

Diameter at the bottom of the front damper is 45mm ( 1.8 inch )

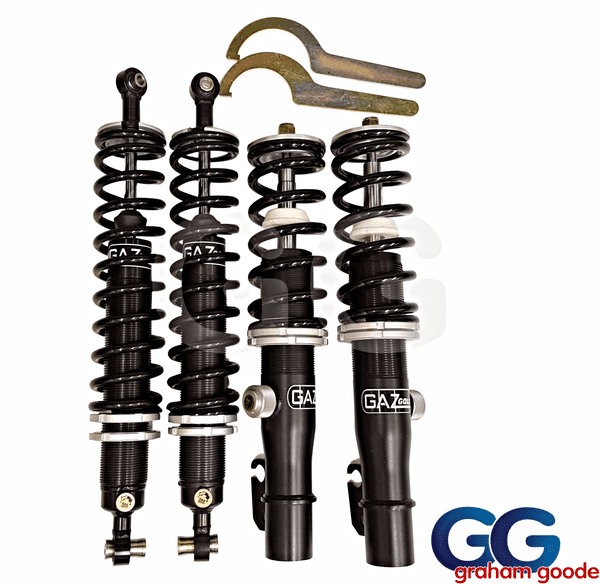

Kit includes 4 dampers

                       4 springs

                       4 spring platforms and lock rings

                       4 spring top caps

                       3 adjustment spanners

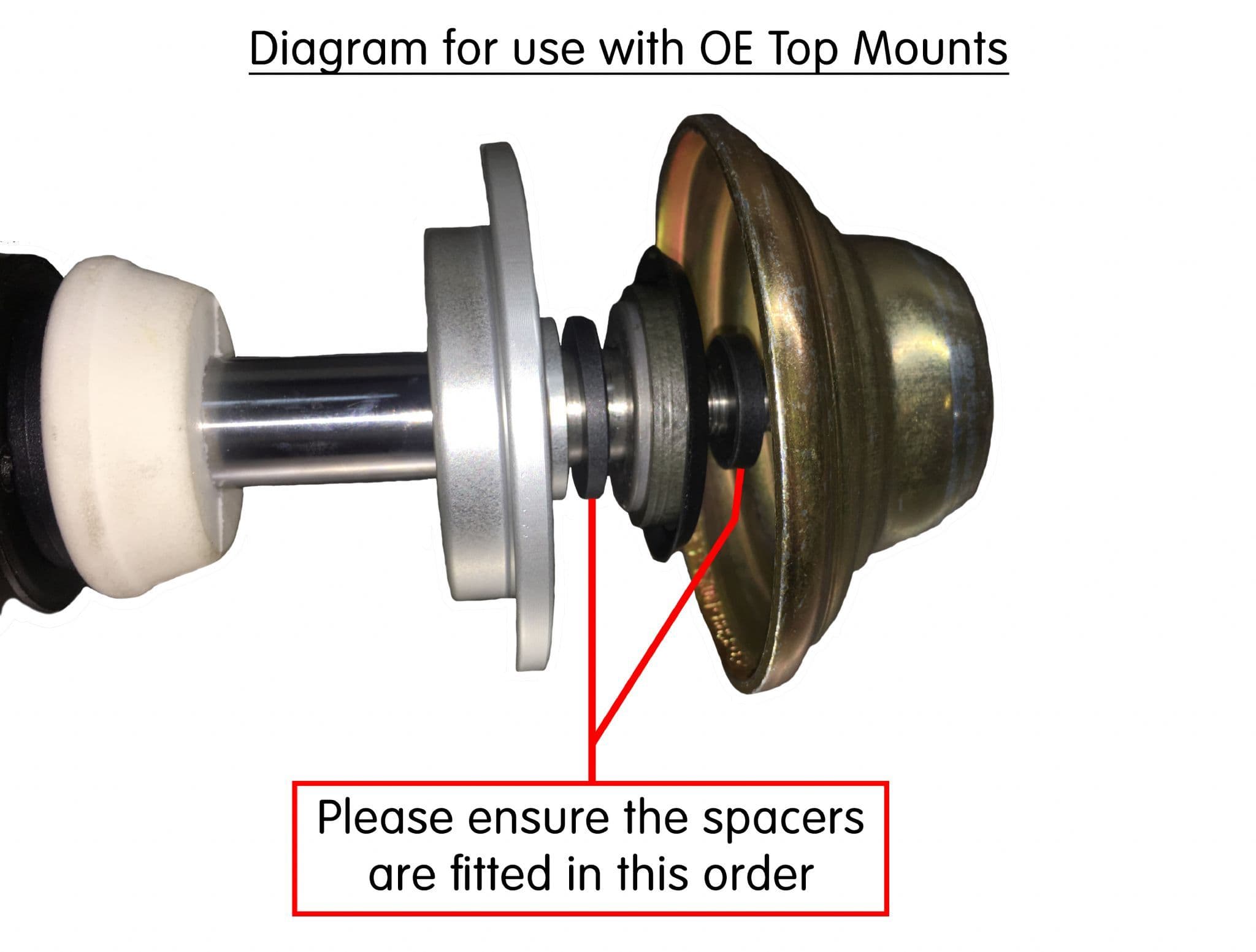

* You will need 2 x 25mm Gaz Gold Spacers & 2 x 32mm Gaz Gold Spacers per car if fitting the Gaz Gold Coilover Kit with standard top mounts


Gaz Gold Coilovers fits Sierra RS Cosworth 3 door, Sierra RS500 Cosworth, Sierra RS Sapphire Cosworth 2WD 4 door
