Gaz Coilover Kit GHA Sierra Sapphire 2WD Cosworth GGR1103

Gaz Coilover Kit GHA Sierra Sapphire 2WD Cosworth GGR1103

Gaz height adjustable coilovers are primarily made for the modified road car market.
The main features of these Gaz Cosworth suspension coilover lowering kits are:-

1. On car damping adjustment

2. Shortened body and stroke lengths to allow a -25 to -65mm ride height adjustment

3. The units have a coarse acme form thread for ease of adjustment and to minimise corrosion the unit is zinc plated.

4. All units are provided with high quality coil springs in various rates and diameters. Spring rates can be altered on request to suit customers requirements.

Springs provided are  front 10 inch long x 300 lbs

                                        rear 12 inch long  x  180 lbs

Diameter of bottom of the front damper is 45mm ( 1.8 inch )

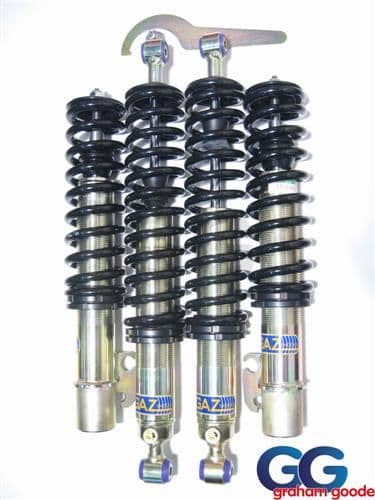

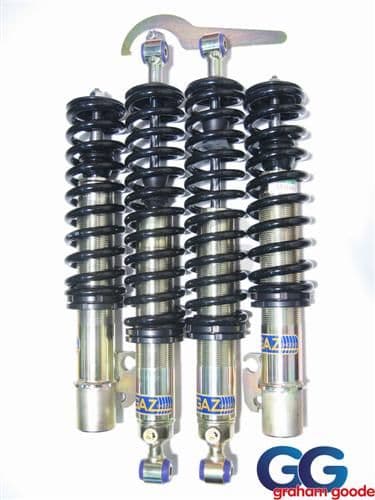

Gaz Cosworth Coilover Kit includes 4 dampers

                       4 springs

                       4 spring platforms and lock rings

                       4 spring top caps

                       1 adjustment spanner

                       1 front damper adjustment tool
Gaz Coilovers Fit Sierra RS Cosworth 3 door, Sierra RS500 Cosworth, Sierra RS Sapphire Cosworth 2WD 4 door

Cosworth Coilover Kits, Tuning and Performance Parts Specialists Graham Goode Racing
Lutterworth Road Aylestone Leicester Tel 0116 2440080
