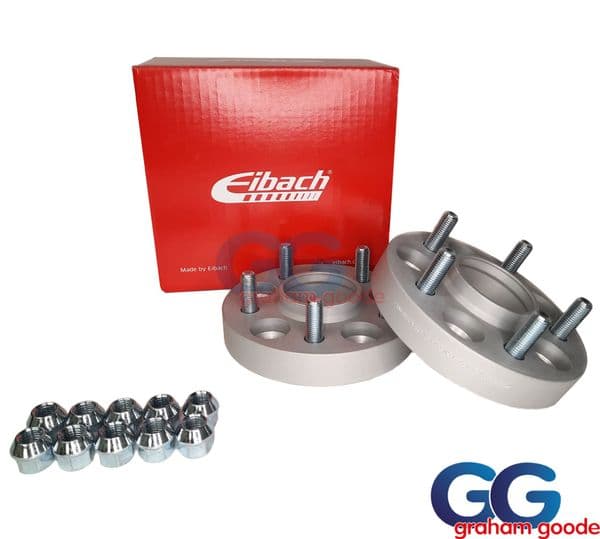

Eibach Wheel Spacers
Fits- Ford Focus RS mk2 2009- onwards
Size Options Available- 15mm-20mm-25mm-30mm-35mm (Reccomended 15mm Front & 20mm Rear)
These Eibach Spacers are hub centric. Locate into the hub making it a tighter, better fitment.
A must have to fill the gap and for an agreesive look.
PCD 108x5
Thread M12x1.5
Centre bore 63.3mm
Offset frontier 22.5

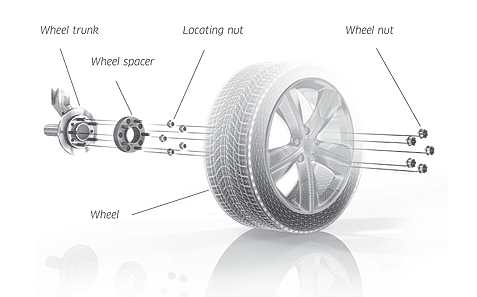

please note : When using the wheelspacers you have to verify that the wheels being used have suitable cut-outs to take up the original bolts. Without these cut-outs it is not possible to use the wheels or wheelspacers! Please check as follows: Stud lengh (e.g. 25mm) minus spacer-thickness (e.g.15mm) = 10mm exess length. So the cut out should have 11mm depth to take the original stud. Further the cut out should have minimum 22mmx22mm height/width to take the overlaping nut. ATTENTION: when using 15 mm spacers at least 7 mm deep cut-outs are needed as the nuts stand over the contact surface!
Also NOT for steel wheels.
Fits- Ford Focus RS mk2 2009- onwards
Size Options Available- 15mm-20mm-25mm-30mm-35mm (Reccomended 15mm Front & 20mm Rear)
- Made from high-tensile-strength aluminum alloy
- Exact fitment by using minimal production tolerances, resulting in exceptional wheel balance
- All applications tested in rigid durability- and fatigue tests
- High-grade corrosion protection through a special coating process (salt spray test according to DIN 50021)
- Significant weight advantage compared to wheel-spacers made from steel
- System version 4
- Front OR rear spacers
- Sold in Pairs
These Eibach Spacers are hub centric. Locate into the hub making it a tighter, better fitment.
A must have to fill the gap and for an agreesive look.
PCD 108x5
Thread M12x1.5
Centre bore 63.3mm
Offset frontier 22.5
please note : When using the wheelspacers you have to verify that the wheels being used have suitable cut-outs to take up the original bolts. Without these cut-outs it is not possible to use the wheels or wheelspacers! Please check as follows: Stud lengh (e.g. 25mm) minus spacer-thickness (e.g.15mm) = 10mm exess length. So the cut out should have 11mm depth to take the original stud. Further the cut out should have minimum 22mmx22mm height/width to take the overlaping nut. ATTENTION: when using 15 mm spacers at least 7 mm deep cut-outs are needed as the nuts stand over the contact surface!
Also NOT for steel wheels.
Customer reviews
Brand:
EIBACH
Condition:
New
Product Code:
S90-4-15-005
Weight:
0.01kg
