Eibach Wheel Spacers 5mm-15mm-20mm-25mm-30mm Ford Fiesta ST 150 Zetec S 1.25 1.4 TDCi 01- 08
Eibach Wheel Spacers
Fits- Ford Fiesta ST150, 1.6 Zetec S , 1.4 16v , 1.4 TDCi , 1.6TDCi , 1.3 , 1.25 2001- 2008
Size Options Available- 5mm-15mm-20mm-25mm-30mm (Reccomended 15mm Front & 20mm Rear)
These Eibach Spacers are hub centric. Locate into the hub making it a tighter, better fitment.
A must have to fill the gap and for an agreesive look.
Spacers fit:
Ford Fiesta 2001 - 2008
Models include
1.25 70hp , 1.25 75hp , 1.3 60hp , 1.3 69hp , 1.4 16v , 1.4 TDCi , 1.6 16v Zetec S, 1.6 TDCi , ST150 2.0 16v
PCD 108x4
Thread M12x1.5
Centre bore 63.3mm
please note : When using the wheelspacers you have to verify that the wheels being used have suitable cut-outs to take up the original bolts. Without these cut-outs it is not possible to use the wheels or wheelspacers! Please check as follows: Stud lengh (e.g. 25mm) minus spacer-thickness (e.g.15mm) = 10mm exess length. So the cut out should have 11mm depth to take the original stud. Further the cut out should have minimum 22mmx22mm height/width to take the overlaping nut. ATTENTION: when using 15 mm spacers at least 7 mm deep cut-outs are needed as the nuts stand over the contact surface!
Also NOT for steel wheels.
Eibach Wheel Spacers
Fits- Ford Fiesta ST150, 1.6 Zetec S , 1.4 16v , 1.4 TDCi , 1.6TDCi , 1.3 , 1.25 2001- 2008
Size Options Available- 5mm-15mm-20mm-25mm-30mm (Reccomended 15mm Front & 20mm Rear)
- Made from high-tensile-strength aluminum alloy
- Exact fitment by using minimal production tolerances, resulting in exceptional wheel balance
- All applications tested in rigid durability- and fatigue tests
- High-grade corrosion protection through a special coating process (salt spray test according to DIN 50021)
- Significant weight advantage compared to wheel-spacers made from steel

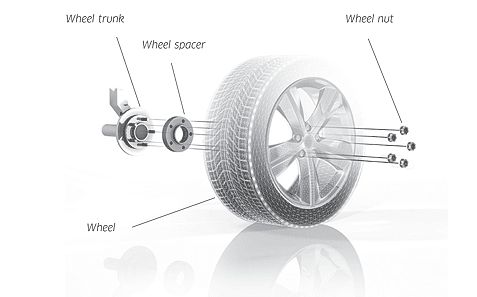

- System version 4
- Front OR rear spacers
- Sold in Pairs

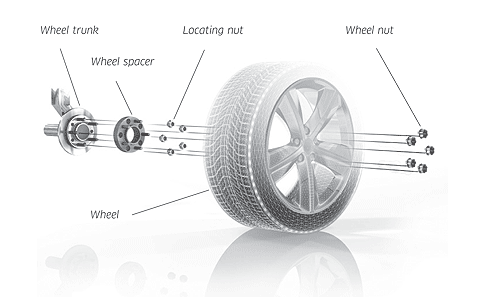

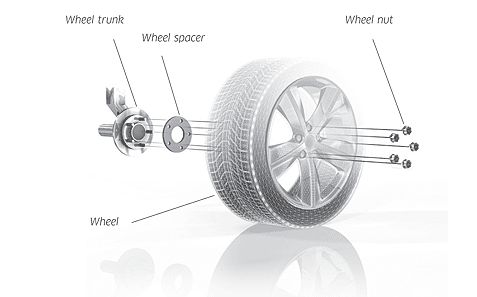

- System 4 , 5 & 6
These Eibach Spacers are hub centric. Locate into the hub making it a tighter, better fitment.
A must have to fill the gap and for an agreesive look.
Spacers fit:
Ford Fiesta 2001 - 2008
Models include
1.25 70hp , 1.25 75hp , 1.3 60hp , 1.3 69hp , 1.4 16v , 1.4 TDCi , 1.6 16v Zetec S, 1.6 TDCi , ST150 2.0 16v
PCD 108x4
Thread M12x1.5
Centre bore 63.3mm
please note : When using the wheelspacers you have to verify that the wheels being used have suitable cut-outs to take up the original bolts. Without these cut-outs it is not possible to use the wheels or wheelspacers! Please check as follows: Stud lengh (e.g. 25mm) minus spacer-thickness (e.g.15mm) = 10mm exess length. So the cut out should have 11mm depth to take the original stud. Further the cut out should have minimum 22mmx22mm height/width to take the overlaping nut. ATTENTION: when using 15 mm spacers at least 7 mm deep cut-outs are needed as the nuts stand over the contact surface!
Also NOT for steel wheels.
Customer reviews
-
Brand:EIBACH
-
Condition:New
-
Product Code:S90-5-05-004
-
Weight:2kg
