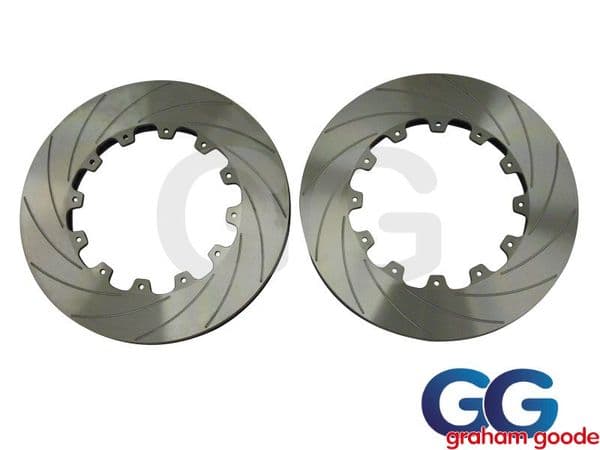

AP Racing Pair RH LH Big Brake Discs
Includes:
2 x AP Racing 362mm x 32mm replacement brake discs
For GGR AP Racing Big Brake Kits
12 Curved grooves on disc
48 Ventilation vanes
215.9 mounting PCD x 12
Left and Right hand side
AP Racing stockist , distributor and fitting centre Graham Goode Racing Lutterworth Road Leicester LE2 8PH Tel 0116 244 0080
Includes:
2 x AP Racing 362mm x 32mm replacement brake discs
For GGR AP Racing Big Brake Kits
12 Curved grooves on disc
48 Ventilation vanes
215.9 mounting PCD x 12
Left and Right hand side
| ‘A’ Outside Diameter - mm | 362.0 |
| ‘B’ Thickness - mm | 32.0 |
| ‘M’ P.C.D. Diameter - mm | 215.9 |
| Mounting Hole Number | 12 |
| Mounting Fixing Type | "Bolted" |
| Mounting Hole Diameter - mm | 6.43 |
| ‘C’ Eye Diameter - mm | 238.0 |
| ‘D’ Inside Flange Diameter - mm | 195.0 |
| ‘H’ Mtg Flange Thickness - mm | 6.425 |
| Max Pad Depth | D61 |
| Number of Vanes | 48 |
| Air Gap - mm | 17.5 |
| Weight - Kg | 7.8 |
| Face Types Available | CG12 |
AP Racing stockist , distributor and fitting centre Graham Goode Racing Lutterworth Road Leicester LE2 8PH Tel 0116 244 0080
Customer reviews
-
Brand:AP RACING
-
Condition:New
-
Product Code:CP4542-142CG12/143CG12
-
Weight:16kg
